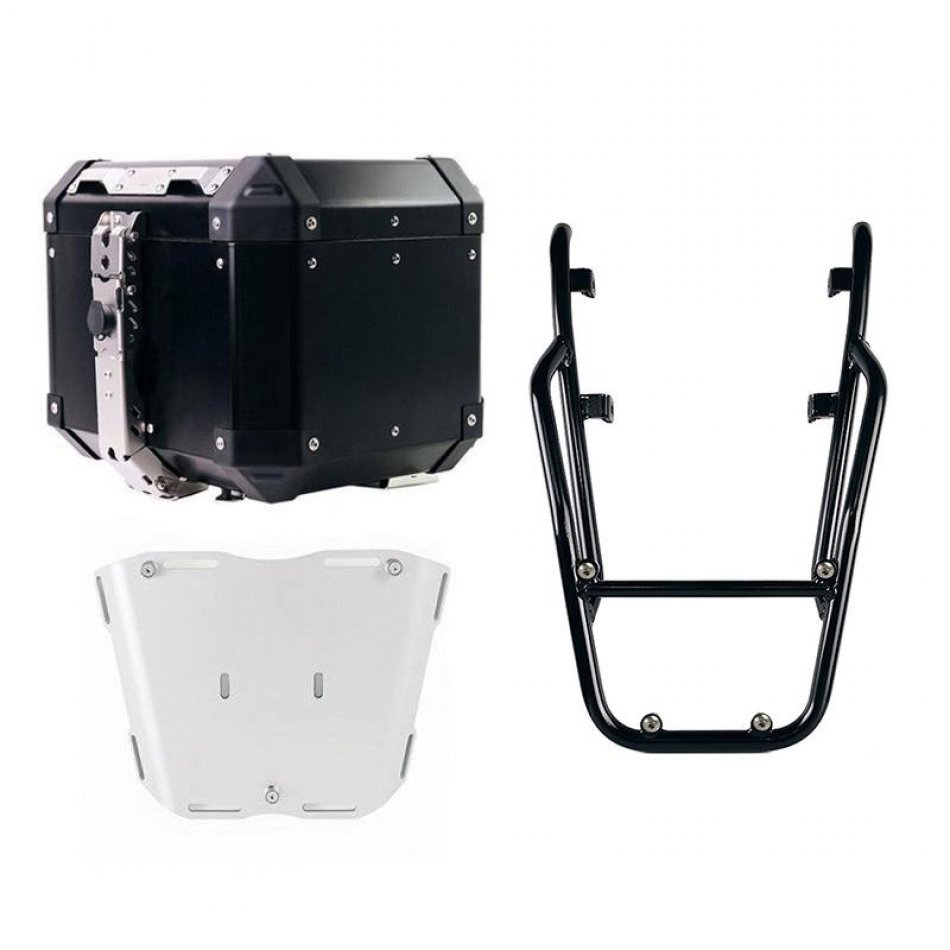

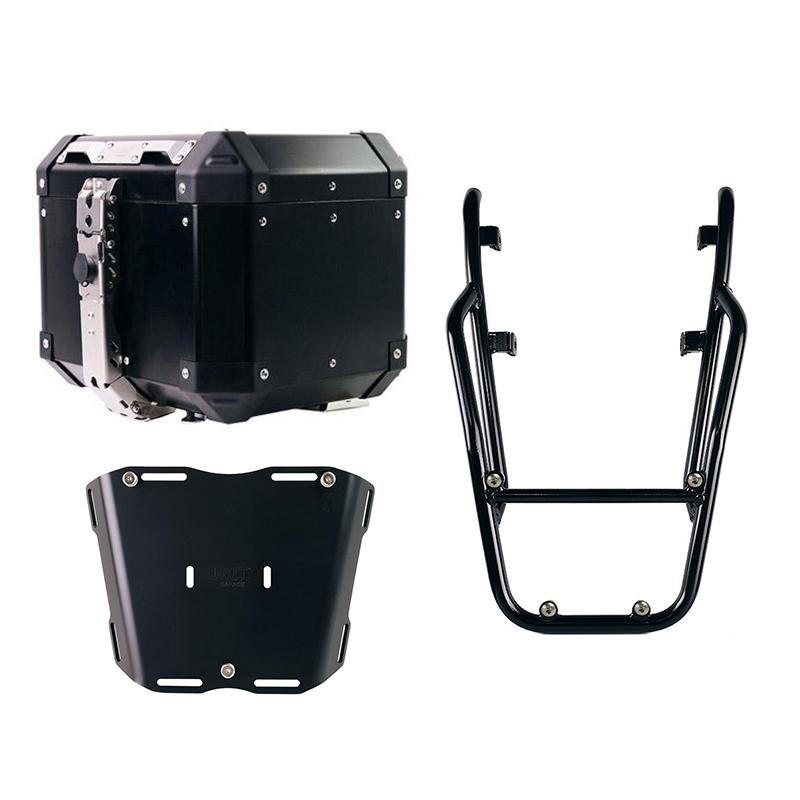

Atlas top case in 36L aluminum + Rear luggage rack with passenger grip Triumph Scrambler 400

  • Code: AL3_BL+4203
€ 754,00 + VAT
Top case plate colour
You have chosen:
quantity
Models compatibility
Aluminum top case
We wanted elegant, classic and robust bags, with beautiful steel zips and thoughtful details: details created for adventure and resistant to all conditions. The lid is equipped with fixings on the inside, and an elastic band is included to use as a support for gloves, documents and small objects. The lid retainer is made of leather with releasable snaps. The closure is designed to accommodate an extra padlock in addition to the one supplied. The top case body is completely lined with sturdy 2.5 mm neoprene capable of cushioning impacts. The hinges, locks and all the details are made of stainless steel and electropolished, something that you will not find in any similar product on the market. The corners are made of sturdy ABS and can be replaced in the event of a fall, as are each individual component. Our Alu bags are completely Made in Italy, assembled by hand one by one.
You will find a mounting kit inside

- Contains a full-face helmet
- Version with hooking system for our plate code AL5 (included)
- Top box body and lid in high-strength aluminum alloy, 1.5 mm thick.
- High quality stainless steel for locks, hinges, screws: staked and electropolished accessories
- ABS corner protectors replaceable in the event of a fall
- Anti-dust protections for the lock cylinders
-
Double sealing gasket on the lid and on the top case body
- With just one key the top case opens and detaches from the motorbike
- Finish: matte black
- If you purchase the pair of bags or the bags + top case it is possible to request the locking cylinders with matching keys

NB: bags of this type are not IP67, it is always advisable to use a watertight container inside to protect your luggage.

dimensions: Height 310 mm, width 400 mm, depth 320 mm
volume: 1 x 36L
weight: 6.5kg

Reinforced stainless steel luggage rack designed for fixing plates or top case (Black colour)
It completes the rear part and is equipped with comfortable handles for the passenger. Sturdy and practical, it can house both the code plate: U108 and the code plate: AL3 for the aluminum top case using the 4 fixings provided. Also excellent for having more loading surface for soft bags by mounting the plate Code: AL13 In this version it is proposed with a high resistance epoxy powder finish in matt black.

NB: Can be mounted with all saddles offered by Triumph.
It is compatible with all our bag frames with the plate and related Atlas Top case code AL3 .
Maximum load capacity 15 kg. Luggage rack also compatible with all models of soft bags.
Material: stainless steel tube diameter 22 and 18, 2 mm thick with 3 mm reinforcements.

Assembly instructions and screws included.

To offer you the best, we constantly improve our products in detail. The images may refer to a previous version.
